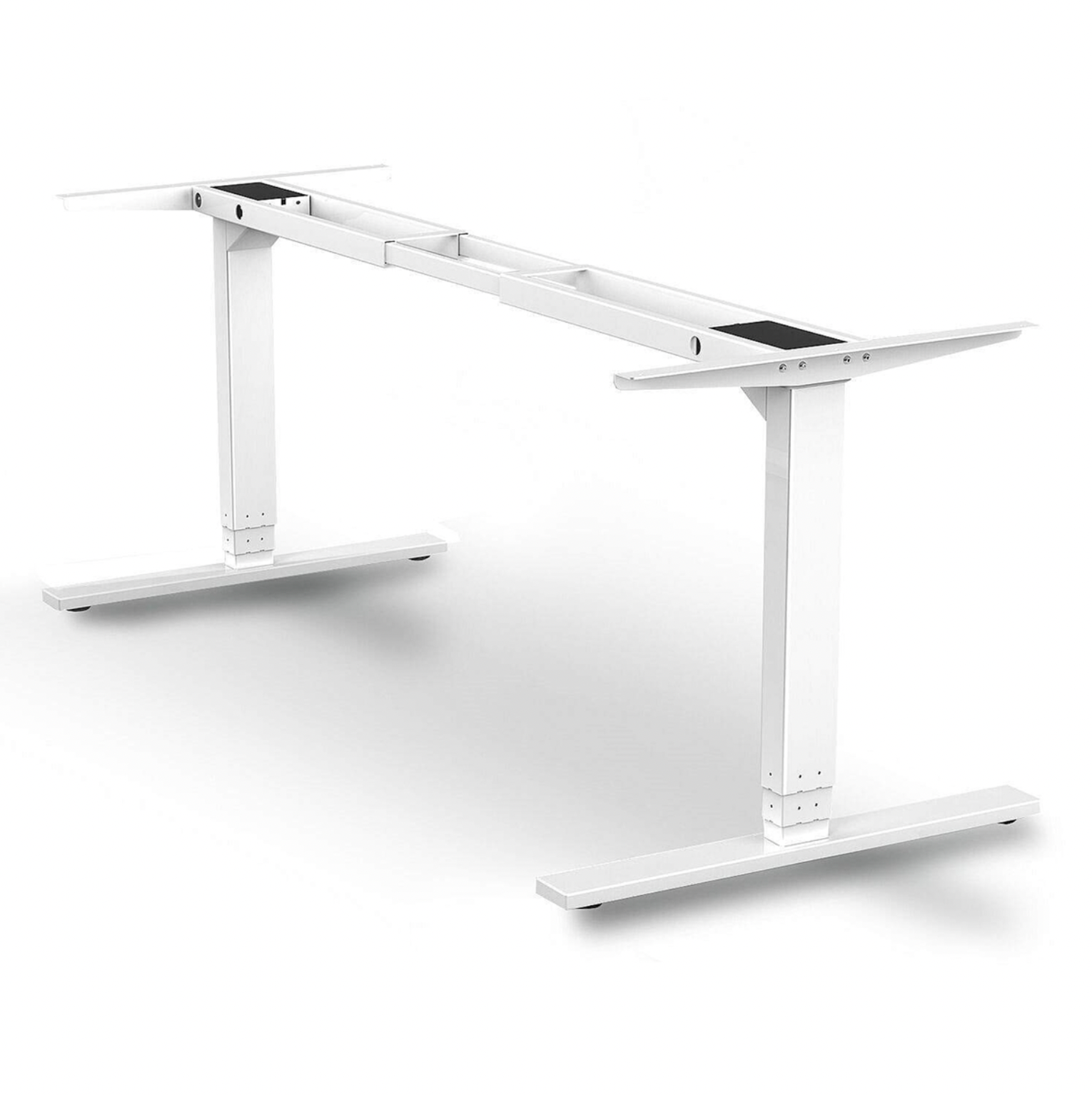

Powered Table Base Three Stage Two Motor, 44-72w (White) Frame Only
44"-72"-Wide Adjustable Height Desk Frame
3-Stage/2-Motor, White
Powered Table Base designed for use with 44-72” overall tops
- Two Motor, Three Stage Unit
- Powder coat finish
- Finish WH White
Control Box with RJ 45 and Modular plug connections, up and down 2 button control with USB Port and settings.
PLEASE NOTE: PRICING IS FOR FRAME AND CONTROL UNIT ONLY, IT DOES NOT INCLUDE THE TOP
Specs:
| Motors | Two |
| Motor Rating |
5.0 amp |
| Control Box Rating |
2.6 amp |
| Control Box Power Draw |
2.4 amp @ 120v AC |
| Control Box Wattage |
200W |
| Noise Level | Below 50Db |
| Stages | Three |
| Top Width | Adjustable 44-72" |
| Top Arm Depth | 22 13/16" |
| Base Construction | Bar, Flat and Tube Steel |
| Frame Construction | Tube Steel |
| Finish | White Powder Coat |
| Anti Collision feature | Adjustable through keypad menu. |
| Base Length | 23 5/8" |
| Base Width | 3 1/2" |
| Shortest Width | 44" |
| Longest Width | 70" |
| Range of Height | 23 1/2" - 46 1/4" |
| Tested to | BIFMA / ANSI and UL E489344 and E493537 Test Date August 2017 |
| Warranty (Limited see specification sheet) | 5 Year on frame 2 Year on motor and control box |
In normal mode, the LED displays the current desktop height value in real time.
